long range uhf reader up to 10m range

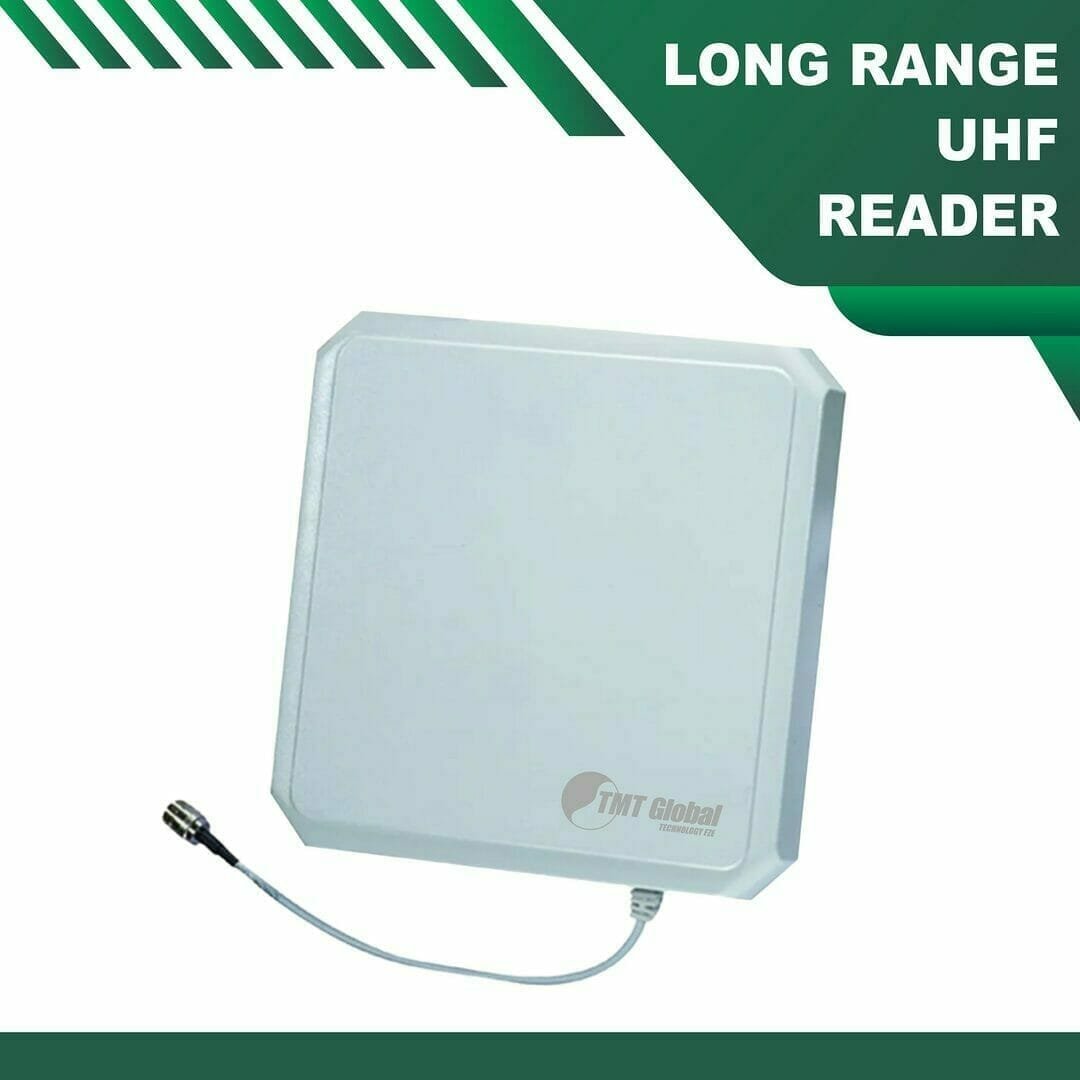

TMT Global Long Range UHF Reader Up To 10m Range TMT Global  long range uhf reader up to 10m range Integrated Reader  widely applied in intelligent transportation, customs access management, warehouse logistics. Applications Vehicle parking, intelligent Weighing Warehouse, Logistics management Asset management Production line management Functions UHF (860-868MHz) Band, Equipped with 10 DBI antenna Support standard RS-232, Wigand Interface Multi-group I/O ports, Controlling the Functional mode of the Reader/Writer Order-Trigger, Set Time-Trigger and Out-Trigger Suitable for Customer’s Applications Upgrade Firmware by serial port online Strong API user Interface Performance Index Operating Frequency: 860-868MHz, RF band Customized (Optional) Frequency Hopping: FHSS or Fixed Frequency Power Output: 20dBm ~ 30dBm@50Ω load, 1dBm each step Antenna: Built-in 12dBi linear Polarization antenna (Horizontal/Vertical Customized) Communication Interfaces: RS-232, Wiegand 26/34 Optional Interfaces: RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces I/O Interfaces: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional) Firmware Update:  Firmware Upgrade Application Software Platform:  API(C , C#) development kit (can be customized) Tag Operation Tag Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C) Reading Range: 0~10m Writing Range: 0~5m Mechanical/Electric Performance IP Rating: IP66 Indicator: Buzzer and LED(Power, Antenna, Reading/Writing) Power: DC 12V Power Assumption: 2W(Standby), 10W(Working) Product Dimension: 445mm x 445mm x 78mm (LxWxH) Package Dimension: 600mm x 500mm x 110mm (LxWxH) Net Weight: 2.5kg Gross Weight: 5.23kg Operating Temperature:  -40℃ ~ 60℃ Storage Temperature: -60℃ ~ 80℃ Humidity: 5%～ 95%(non-condensing)
